What is the difference between normal batteries and tabless cell batteries?

The biggest difference lies in the type of current transmission within the battery cell. Whereas conventional lithium-ion batteries conduct the current via a narrow tab, tabless technology uses the entire surface area for unobstructed energy flow. Tabbed cells : the current must pass through the tab, a single metal strip. This leads to a higher resistance under high load and can generate more heat which ultimately affects the life of the battery. Tabless cells: The metal foils are directly connected over the entire length. The current flows over a large area, which significantly reduces the internal resistance.

Is there an increased risk of fire due to the high performance of the tabless cells?

No, quite the opposite. The tabless design is specifically designed to reduce heat development, as heat is the greatest stress factor for any battery cell. As the current flows through many contact points, hardly any accumulated heat is generated. All cells are thermally networked and are actively cooled by the battery cooling feature , which consistently prevents critical hot spots inside. The Smart Control function protects the battery from overload and deep discharge at all times.

STIHL ALLPRO AP 300.0 PC battery in front of a vehicle's cargo area

Tabless battery technology: more power for gardening and landscaping, forestry, and construction

Long-lasting performance you can rely on; discover the batteries in the ALLPRO performance series with innovative tabless cells.

31.07.2026

Overview: STIHL tabless battery technology

What are tabless cells? With tabless technology, the battery cells can transmit energy across a much wider surface rather than via a narrow tab.
How do tabless cells work? The full-surface flags reduce the internal resistance within the cell, allowing energy to flow more easily. This reduces heat generation and maximises power flow during charging and discharging.
Advantages of STIHL tabless batteries IPX5 protection, Smart Control, battery cooling and a cold-start function.
STIHL batteries with tabless cells at a glance The ALLPRO Performance series offers you the right battery set-up for every professional application with a choice of four batteries : AP 100.0 P, AP 200.0 P, AP 300.0 P and the AP 300.0 PC.
Compatibility of batteries with tabless design STIHL batteries with tabless cells are compatible with all chargers and battery power tools from the previous AP system as well as with selected third-party power tools approved by STIHL

STIHL ALLPRO: the next level for battery tools

For decades, STIHL has stood for uncompromising quality in innovations and technologies that make your everyday work noticeably easier: in forestry, gardening and landscaping, on construction sites or in demanding domestic projects. With the STIHL ALLPRO battery system, we offer you exactly the right energy source for every challenge.

What are tabless cells?

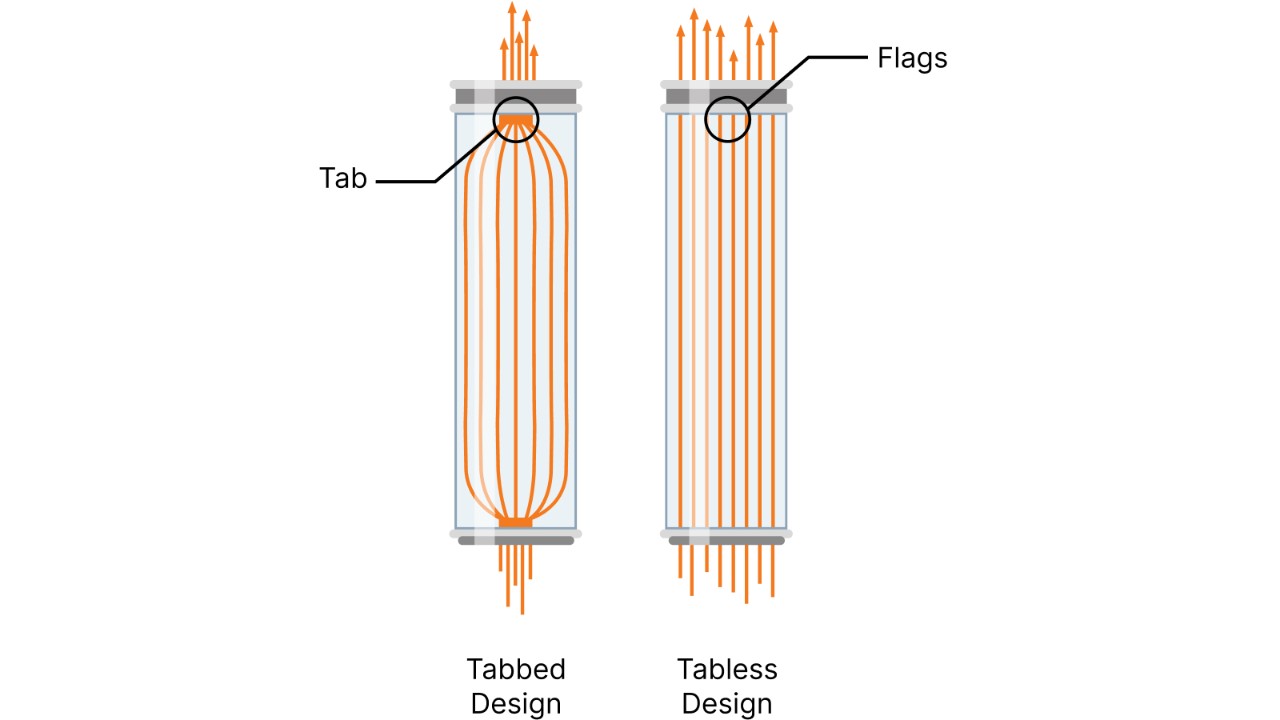

Tabless battery cells are the next generation of lithium-ion technology. The new cell design eliminates the physical bottleneck of conventional cells. Instead of conducting the current through a single, narrow contact (tab), tabless cells use flags over the entire surface for the energy flow. 

What distinguishes a battery with tabless cells from a conventional lithium-ion battery?

How does a battery with tabless cells work?

Timothy Renschler from STIHL Product Management summarises the effects of a battery with a tabless design on your work:

“The flags in the tabless cells reduce internal resistance, meaning the battery cell doesn’t get as hot and can deliver a significantly higher power output. This is the case both when discharging and charging the battery. That’s why we can charge STIHL batteries with tabless design super-fast."

Increased power, faster charging time, longer service life: the benefits of tabless cells

ALLPRO was developed in partnership with professional users

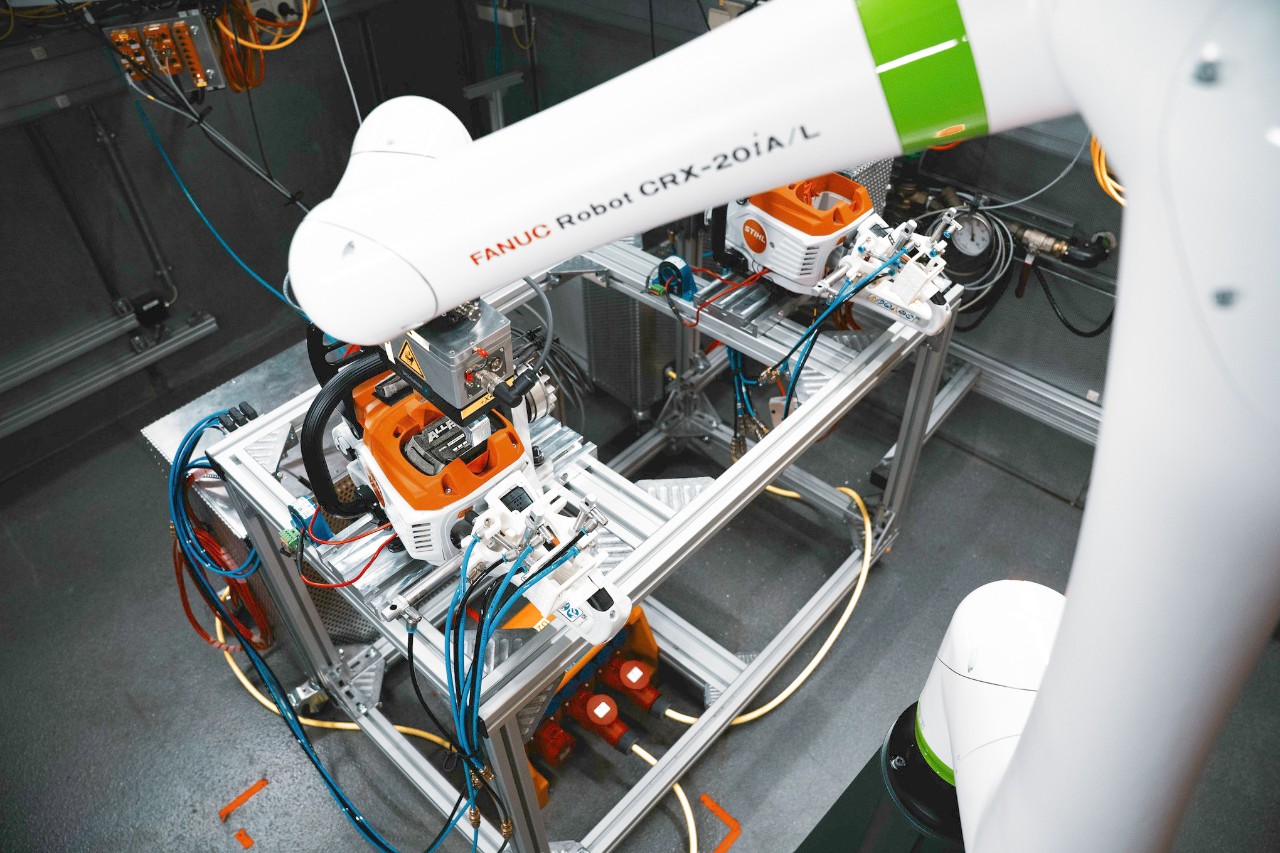

To make sure that STIHL batteries can withstand real-life usage, they have to show what they can do in the test laboratory. To do so, they undergo rigorous drop, drum and insertion cycle tests. Thanks to their robust design, they can withstand drop heights of up to 1.5 metres and the cell technology is reliably protected against loss of function. But the most important test takes place outside; across the world, professional companies test the batteries under real-life conditions in their daily work. The result? A robust system designed for your daily challenges. No matter how tough the job gets, your ALLPRO battery system is ready.

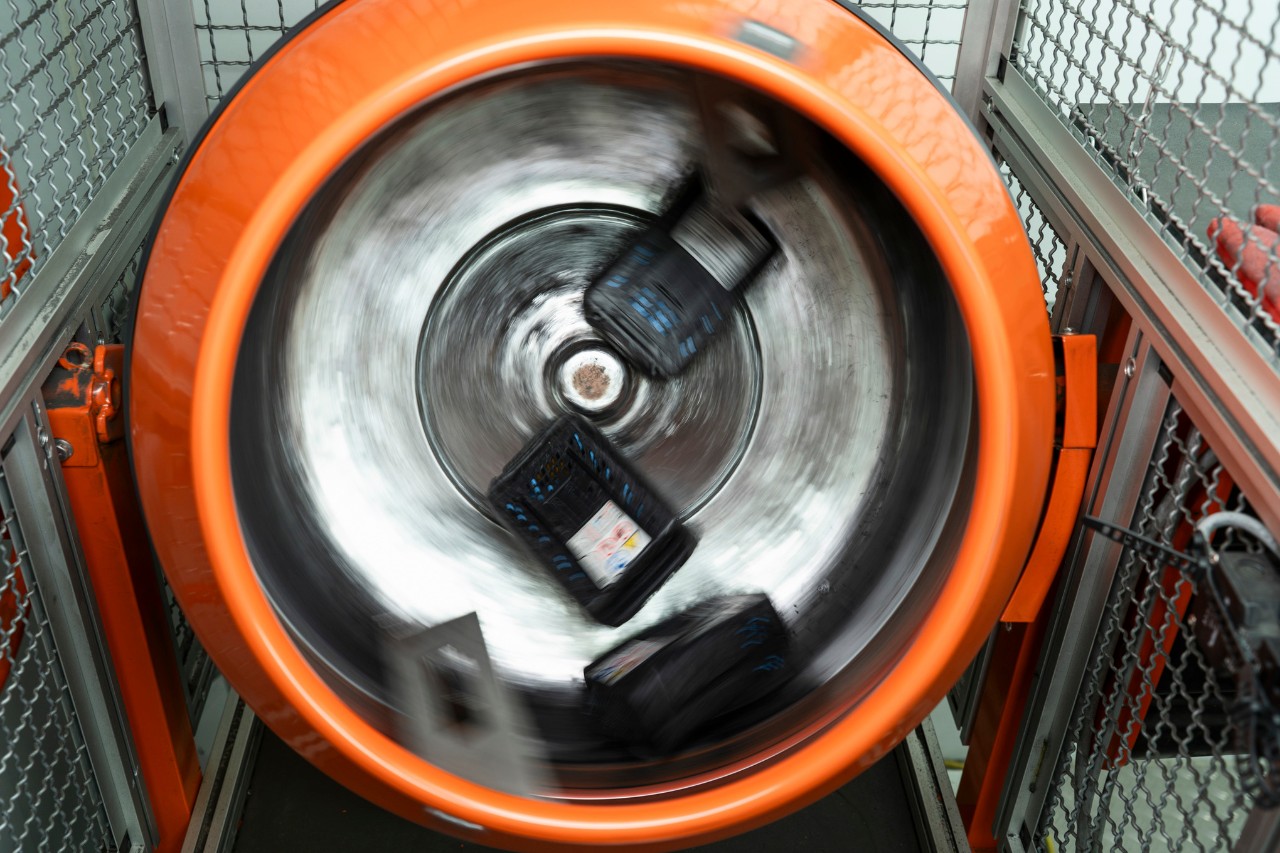

An ALLPRO Battery Pack in a Two-Hour Drum Test

More charge cycles, more power, use in extreme conditions, IPX5 rating. 

These advantages are proven in complex testing procedures. Find out how we put the ALLPRO batteries through their paces in our Research and Development department.

Take a look behind the scenes

Intelligent, reliable, long-lasting: How tabless cells improve your work

The ALLPRO system makes your daily work easier. Whether you are working in the rain, on tough jobs or under pressure, STIHL batteries with tabless cells offer a range of features to help you get the job done.

IPX5 protection⁴

For working in the rain

Smart Control function

The energy your project needs

Battery cooling function

Heat protection during charging

Cold start function

Ready to start at any temperature

Would you like to find out more about STIHL ALLPRO batteries with tabless cells?

Find a dealer near you

The STIHL ALLPRO battery system: performance with tabless design

STIHL tabless technology: Performance data overview

	AP 100.0 P	AP 200.0 P	AP 300.0 P(C)
Weight	0.9 kg	1.4 kg	1.9 kg
Energy (Watt Hours)	111 Wh	222 Wh	333 Wh
Charging time¹	9 min / 80%	9 min / 80%	9 min / 80%
Charge cycles³	>3,000	>3,000	>3,000
Operating temperature	-20 to +50 °C	-20 to +50 °C	-20 to +50 °C

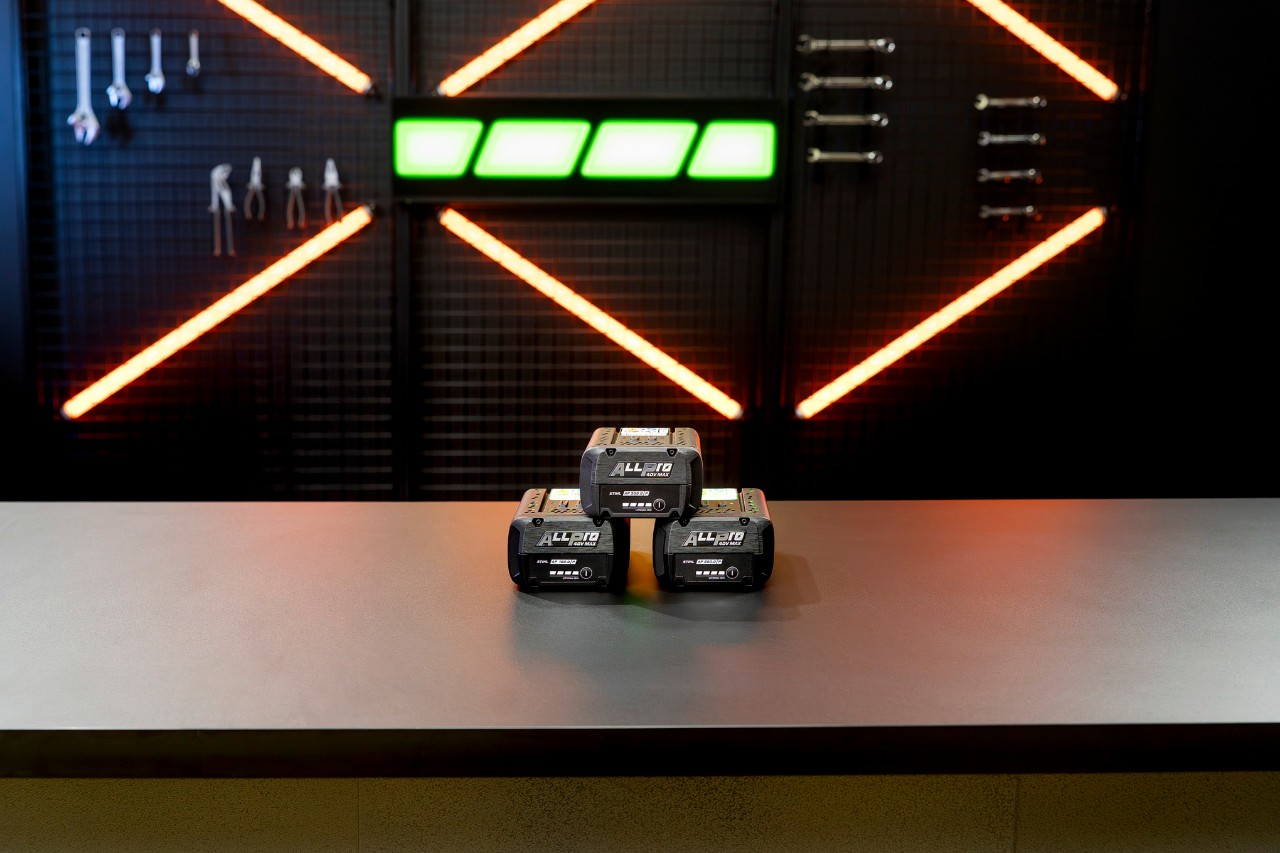

The ALLPRO Performance Series with a tabless design

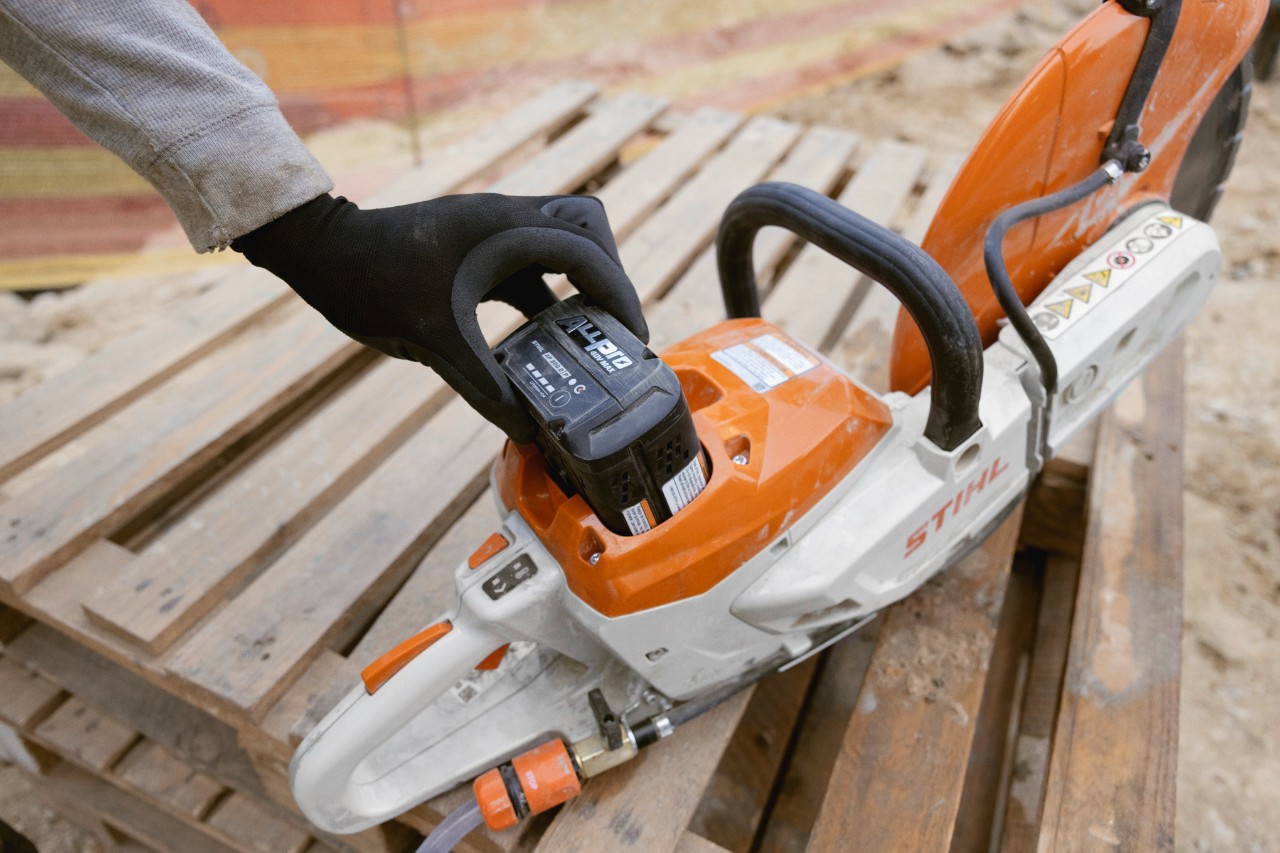

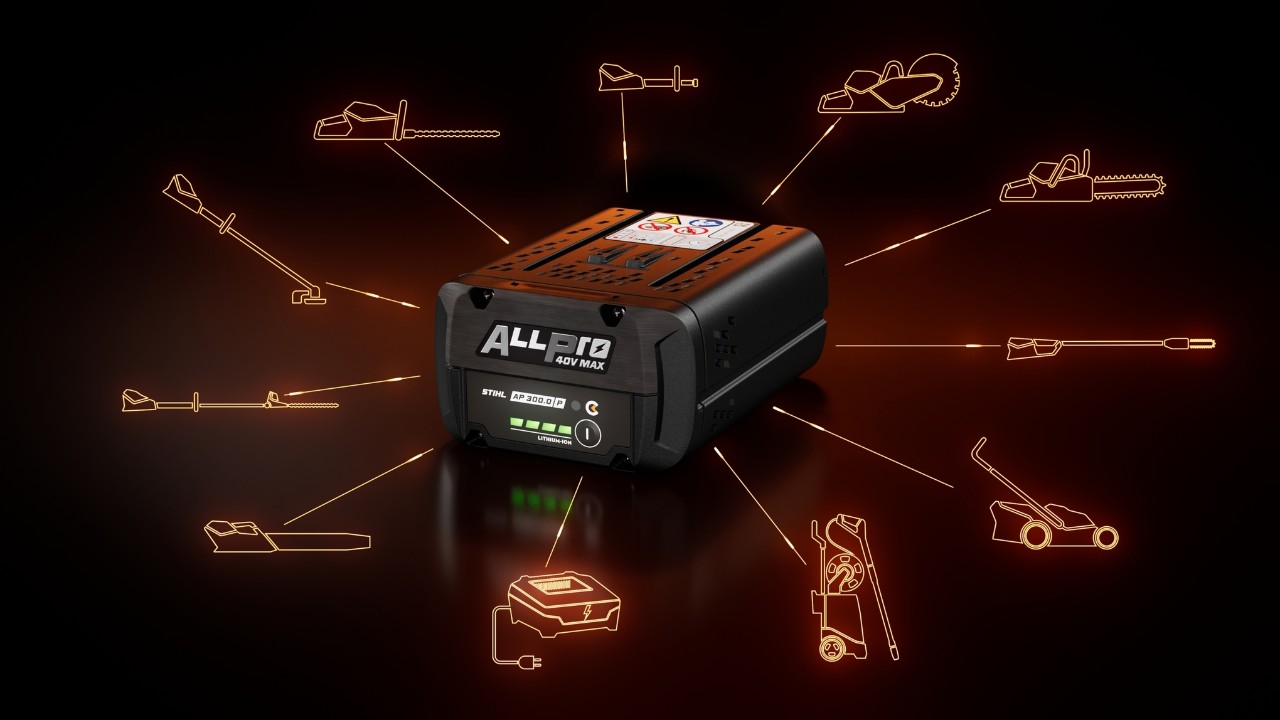

Which power tools are STIHL tabless cell batteries compatible with?

STIHL batteries with tabless cells from the ALLPRO system are compatible with all STIHL battery power tools and chargers from the previous AP system. In addition, STIHL ALLPRO batteries also fit in selected STIHL-approved third-party power tools.

Digital fleet management for your STIHL battery products

STIHL connected technology is integrated directly into the AP 300.0 P C battery. This allows you to manage your power tool fleet digitally. You can easily keep track of the charge level, location and battery health via the app and integrate the new batteries directly into your digital fleet.

STIHL online advisors

The STIHL newsletter

Would you like to hear more from STIHL? Sign up to our newsletter for regular updates on everything there is to know about our high-performance products.

Subscribe to the newsletter

Frequently Asked Questions about STIHL tabless technology

The biggest difference lies in the type of current transmission within the battery cell. Whereas conventional lithium-ion batteries conduct the current via a narrow tab, tabless technology uses the entire surface area for unobstructed energy flow. 

Tabbed cells: the current must pass through the tab, a single metal strip. This leads to a higher resistance under high load and can generate more heat which ultimately affects the life of the battery.

Tabless cells: The metal foils are directly connected over the entire length. The current flows over a large area, which significantly reduces the internal resistance.

The ALLPRO performance series is designed to have a very long service life. With up to 3,000 charge cycles * without any significant loss of performance, you're investing in technology you can rely on for many years to come.

^{* Up to 3,000 charge cycles without noticeable deterioration. Still usable beyond this point. Only valid for ALLPRO AP 100.0 P, AP 200.0 P and AP 300.0 P(C).}

The batteries with tabless cells (the ALLPRO performance series, consisting of AP 100.0 P, AP 200.0 P and AP 300.0 P(C)) are fully compatible with all STIHL battery tools and chargers from the previous AP system.

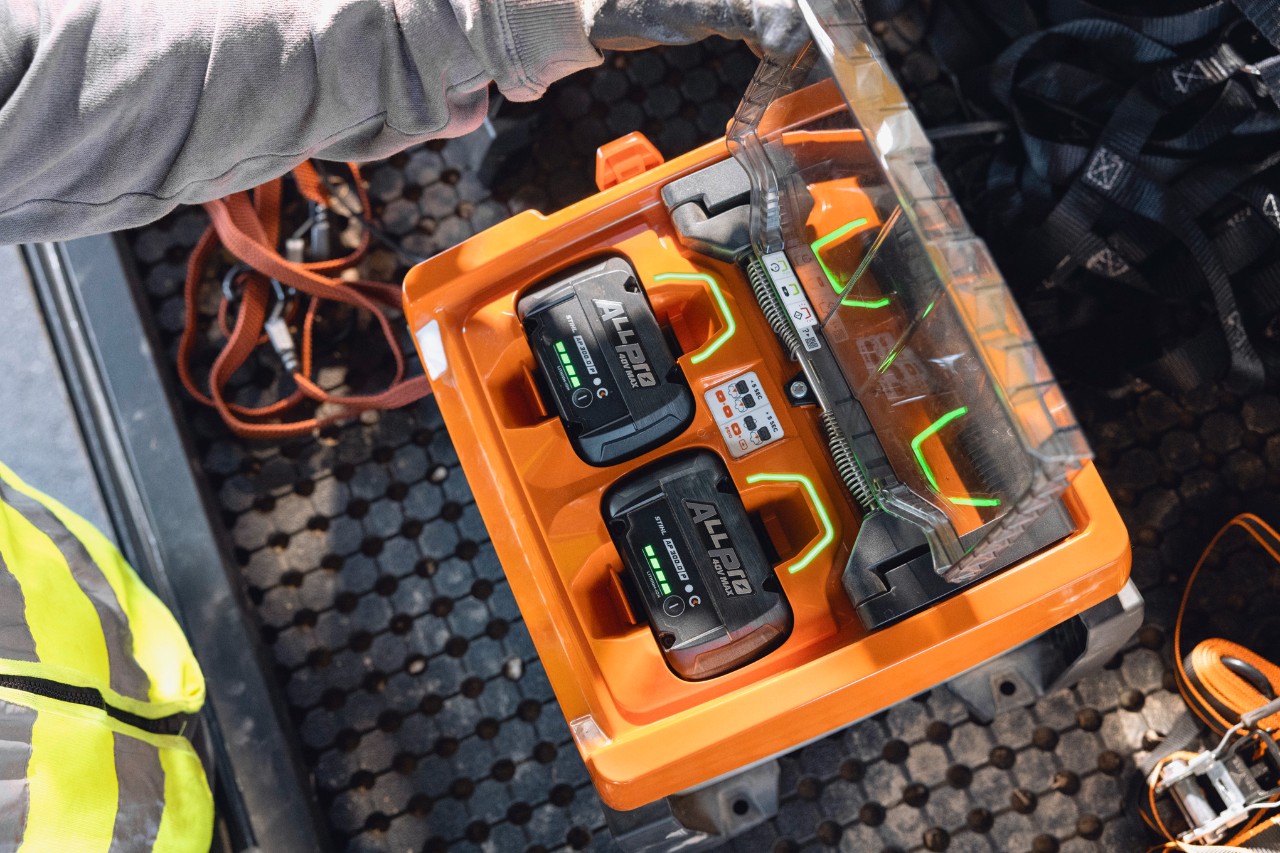

No, you can charge ALLPRO batteries with tabless cells with all STIHL chargers from the AP system. The new AL 1802 MO charger will deliver the fastest charging though; with this, you can charge your AP 300.0 P(C) back to 80% in just nine minutes*.

_{* Time to charge up to 80% at ambient or battery temperatures of 25–40 °C in combination with AL 1802 MO. Only valid for ALLPRO batteries AP 100.0 P, AP 200.0 P and AP 300.0 P(C).}

No, quite the opposite. The tabless design is specifically designed to reduce heat development, as heat is the greatest stress factor for any battery cell. 

As the current flows through many contact points, hardly any accumulated heat is generated.

All cells are thermally networked and are actively cooled by the battery cooling feature, which consistently prevents critical hot spots inside.

The Smart Control function protects the battery from overload and deep discharge at all times.

More battery information

_{¹Time to reach 80% charge at ambient/battery temperatures of 25-40°C in combination with AL 1802 MO. Valid for ALLPRO batteries AP 100.0 P, AP 200.0 P and AP 300.0 P(C).

²Comparison between AP 300.0 P (C) and AP 300 S. 

³Up to 3,000 cycles without noticeable loss of performance; can still be used afterwards. Only valid for ALLPRO batteries AP 100.0 P, AP 200.0 P and AP 300.0 P(C).}
